A nice and fully customizable Kotlin numeric keypad view for Android

Try it out

Gradle dependency

Add the JitPack repository in your root build.gradle at the end of repositories

allprojects {
  repositories {
    ...
    maven { url 'https://jitpack.io' }
  }
}

Add the dependency in your app build.gradle file

implementation 'com.github.yoanngoular:numpadview:1.0.0'

Maven dependency

Add the JitPack repository to your build file

<repositories>
  <repository>
    <id>jitpack.io</id>
    <url>https://jitpack.io</url>
  </repository>
</repositories>

Add the dependency

<dependency>
  <groupId>com.github.yoanngoular</groupId>
  <artifactId>numpadview</artifactId>
  <version>1.0.0</version>
</dependency>

Get Started

Just declare the custom view inside your xml :

<com.ygoular.numpadview.NumPadView
    android:id="@+id/num_pad_view"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    />

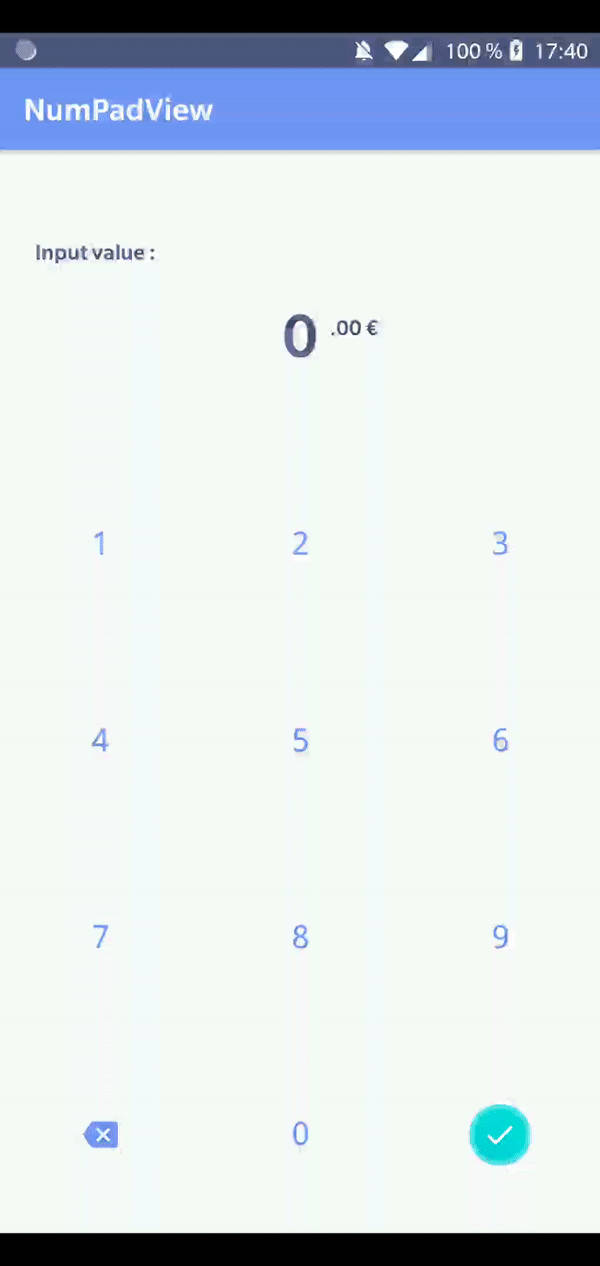

It should now look just like this.

Customize your keypad

There is a bunch of configurations that you can add to the declaration of the custom view inside your xml file.

  app:text_size="13sp"
  app:text_color="@color/gray_dark"
  app:text_style="italic"
  app:text_ripple_effect="false"
  app:font_path="/fonts/Monaco.ttf"
  app:left_icon="@drawable/ic_fingerprint"
  app:left_icon_tint="@color/red"
  app:left_icon_ripple_effect="true"
  app:drawable_right="false"
  app:background_resource="@drawable/numpad_bg"

The drawable_right and drawable_left properties defines whether or not there is an icon to set on the left and/or the right.

You can also decide to change configurations programmatically at runtime. In that case, use the proper setter from the following list.

 num_pad_view.setTextSize(13F)
             .setTextColor(R.color.gray_dark) // You can pass unresolved colors reference
             .setTextStyle(Typeface.ITALIC)
             .setTextRippleEffect(false)
             .setTextFont("fonts/Monaco.ttf")
             .setLeftIcon(R.drawable.ic_fingerprint) // You can pass unresolved drawable reference
             .setLeftIconTint(255, 255, 255) // You can pass RGB color format
             .setRightIcon(resources.getDrawable(R.drawable.ic_check, theme)) // You can pass resolved Drawable object
             .setRightIconTint("#000000") // You can pass hexa color format
             .setRightIconRippleEffect(false)
             .setBackgroundDrawableResource(R.drawable.numpad_bg) // You can set a custom Drawable background to the view
             .apply() // This method has to be called when changes have been made on the view's attributes

To restore defaults properties just use restoreDefaults() method as follow :

  num_pad_view.restoreDefaults() // This method already implicitly call apply() method so you don't need to call it

The library offers you different ways of implementing a custom listener for this view.

The Kotlin way

Implementing all 3 callback methods

  num_pad_view.setOnInteractionListener(

          onLeftIconClick = { /* Do some stuff here */ },
          onRightIconClick = { /* Do some stuff here */ },
          onNewValue = { /* Do some stuff here */ }

          )

Implementing onNewValue callback only

  num_pad_view.setOnInteractionListener {
      when (it) {
          NumPadView.DEFAULT_LEFT_ICON_VALUE -> { /* Do some stuff here */ }
          NumPadView.DEFAULT_RIGHT_ICON_VALUE -> { /* Do some stuff here */ }
          else -> { /* Do some stuff here */ }
      }
  }

or

  num_pad_view.setOnInteractionListener { value -> /* Do some stuff here */ }

By default, onLeftIconClick and onRightIconClick call onNewValue with their respective default value.

  DEFAULT_LEFT_ICON_VALUE = "LEFT"
  DEFAULT_RIGHT_ICON_VALUE = "RIGHT"

Implementing NumPadView.OnNumPadInteractionListener

  override fun onNewValue(value: String) { /* Do some stuff here */ }

Set your class as listener with

  num_pad_view.setOnInteractionListener(this)`

The Java way

  numPadView.setOnInteractionListener(new NumPadView.OnNumPadInteractionListener() {
      @Override
      public void onRightIconClick() { /* Do some stuff here */ }

      @Override
      public void onLeftIconClick() { /* Do some stuff here */ }

      @Override
      public void onNewValue(@NotNull String value) { /* Do some stuff here */ }
  });

Contributing

Do not hesitate to contribute if this is a useful library for you !

Bug report?

• If at all possible, please attach a minimal sample project or code which reproduces the bug.
• Screenshots are also a huge help if the problem is visual.

Send a pull request!

• If you're fixing a bug, please add a failing test or code that can reproduce the issue.

Please hit me up at [email protected] for any feedback or issues you may encounter.
